TikZ package

PGF/Tikz is a (La)TeX macro package for generating graphics. It comes with a user-friedly syntax layer called TikZ.

Nodes and Paths

 \begin{tikzpicture}[node distance=2cm]
   \node (3) [draw,circle, fill=yellow] {};
   \node (0) at (0.2,-2) [draw,circle,fill=blue]{};
   \node (4) at (0,-1.8) [draw,circle,fill=red,semitransparent]{};
   \node (2) [draw,circle,fill=magenta, right of=3]{};
   \node (1) [draw,circle,fill=green, below of=2]{};
   \path[->] (0) edge (1);
   \path[->] (1) edge (2);
   \path[->] (2) edge (3);
   \path[->] (3) edge (4);
   \node (flux) at (1,-1) [] {$\Phi$};
 \end{tikzpicture}

source

Quick previews (KTikZ)

TikZ stands for "TikZ ist kein Zeichenprogramm", which literally means "TikZ is not an interactive program". That means that the TikZ is at most a programming language and not an editor or any other kind of interactive program.

That can be a serious drawback for us who are used to draw interactively. In practice we have to edit a LaTeX/TikZ file, compile and view many times to see whether the image we are programming is the one we want.

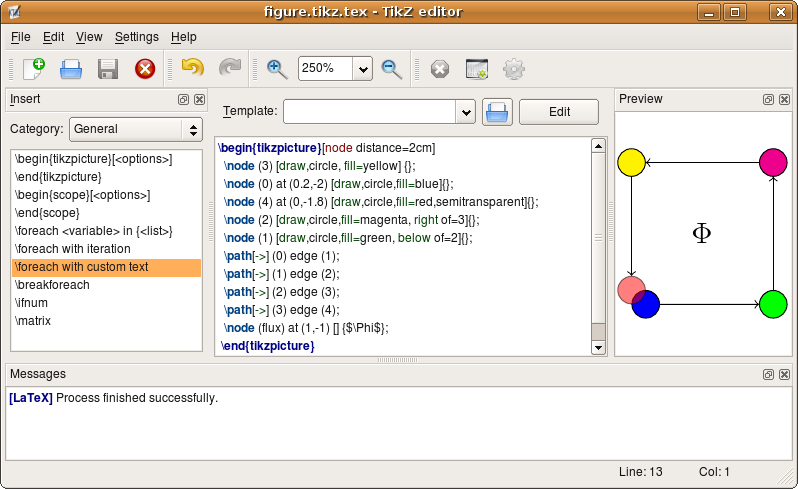

There is a small program called KTikZ that allows us to see side by side the code and the resulting image without needing to manually compile and view.

To install in Ubuntu, just click here http://www.hackenberger.at/ktikz/debian_lenny/ktikz_0.8-1_i386.deb. The program naturally requires LaTeX, TikZ to work (which are part of most Linux distributions now).

Plots

PGFplots is a tikz library to to draw plots and display tables directly in TeX. It can be installed in different ways, including as https://launchpad.net/~johannes-reinhardt/+archive/ppa/+files/pgfplots_1.3.0-0ubuntu1_all.deb.
